RGB-A
Our precision-engineered gearbox is designed for compact applications requiring high torque, reliability, and long service life. With customizable ratios and shaft options, it is suitable for a wide range of industrial and automation uses
Technical Data
| Specification | Units | Details |
|---|---|---|
| Gear Ratio | RPM | 4.1666:1 (min) to 40:1 (max) |
| Maximum Torque | Nm | 15 |
| Height | mm | 28 mm (max) |
| Output Shaft | mm | Ø12 x 20 (custom available on request) |
| Dimensions (L x W x H) | mm | 107 x 65 x 28 |
| Weight | gm | 350 – 500 |
| Motor Combination | — | Synchronous motors, BLDC motors, PM stepper motors, and DC geared motors |
| Mounting | — | Any mounting type supported |
| Axial Thrust (FA) | N | 400 |
| Lateral Force | N | 600 |

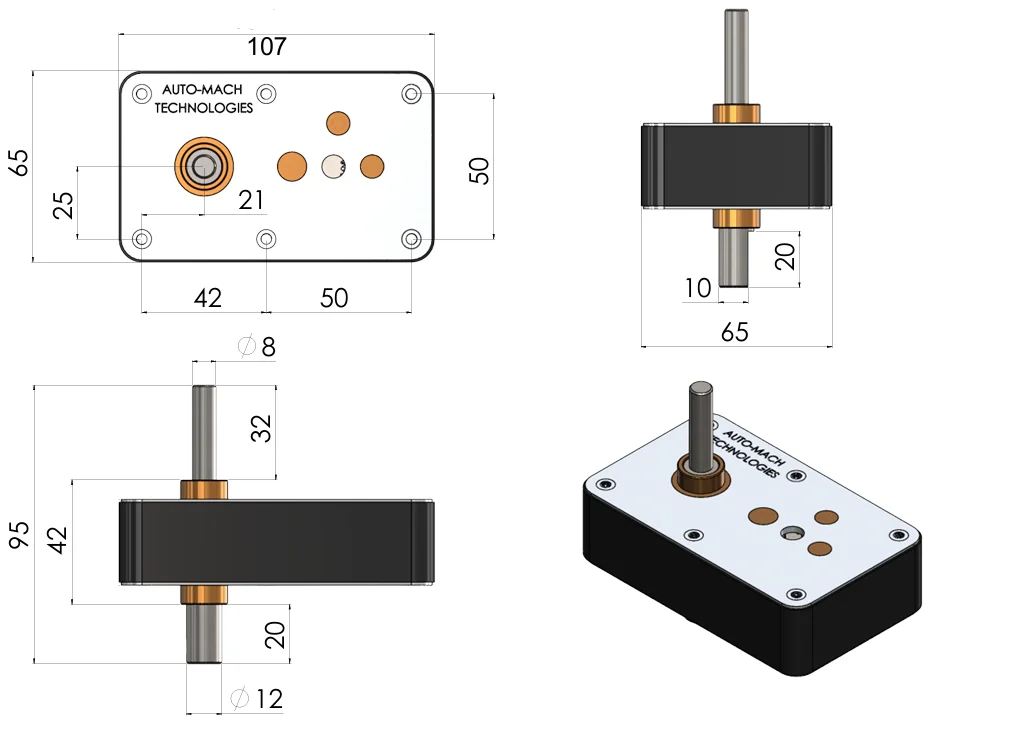

Dimensional Drawing
Applications
The motor’s precise control, durability, and efficiency make it ideal for a wide range of diamond processing and industrial automation tasks:
Timers
Ensuring precise control over time-based operations.
Conveyor Systems
Used for smooth material handling in manufacturing and packaging lines.
Automated Gates and Doors
Delivering precise motion for opening and closing mechanisms.
Chart Recorders
Driving recording mechanisms for accurate data logging.
Potentiometer Drives
Providing smooth adjustment and calibration functions.
Robotics
Enabling accurate positioning and movement in robotic arms.
Light Displays
Enabling controlled movement in display mechanisms.
Hour Meters
Tracking machine operating hours reliably.
Printing Machines
Maintaining synchronization for high-quality printing.
Cam Timers
Coordinating sequential operations in automated systems.
Programming Devices
Supporting positioning and control functions.
Control Instrumentation
Enhancing accuracy and consistency in monitoring equipment.
